SYLVANIA Ultra 20 Inch LED Light Bar - Combo

3.6 out of 5 Customer Rating
SYLVANIA LED off road lights require a mounting accessory to properly install it on your vehicle. Compatible harness/brackets to this light can be found below our product features on this page.




Our products are available in many major retailers across the country.


When your vehicle lighting isn't giving you enough light, the SYLVANIA 20" LED Off-Road light bar boasts a bright white beam pattern, pushing light onto the trail and woods around you. The bright, combination spot and flood beam light uses world-renowned OSRAM high power LEDs to produce an extremely high light output of 4100 effective lumens so you can see better.


  • LIFETIME WARRANTY: SYLVANIA Off-Road LED light bars are backed by a Lifetime Limited warranty. With over 100+ years in business, SYLVANIA is the world leader in automotive lighting. For details visit
  • PERFORMANCE + STYLE: Ultra 20" LED light bar designed to maximize visibility. Intense 6000K light with 9120 raw lumens. Combo beams are best for both low and high speed applications that benefit from increased down and side road visibility.

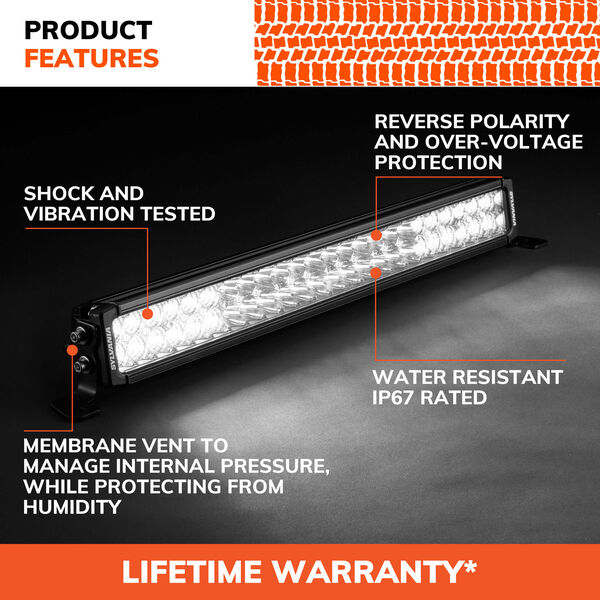

  • WATERPROOF RATING : Rugged aluminum body designed for optimal heat removal, handles rough off-road environments and resists corrosion. Impact resistant polycarbonate lens. IP67 rated water resistant up to 3 feet for 30 minutes.
  • BUILT FOR ANY ADVENTURE : SYLVANIA LED light bars are designed to be tough enough for a wide range of applications. Compatible with Jeeps, Trucks, Cars, Boats, SUV, UTV, ATV, Snowmobiles, Motorcycles, Dirt Bikes, 4x4, and other 4WD vehicles.

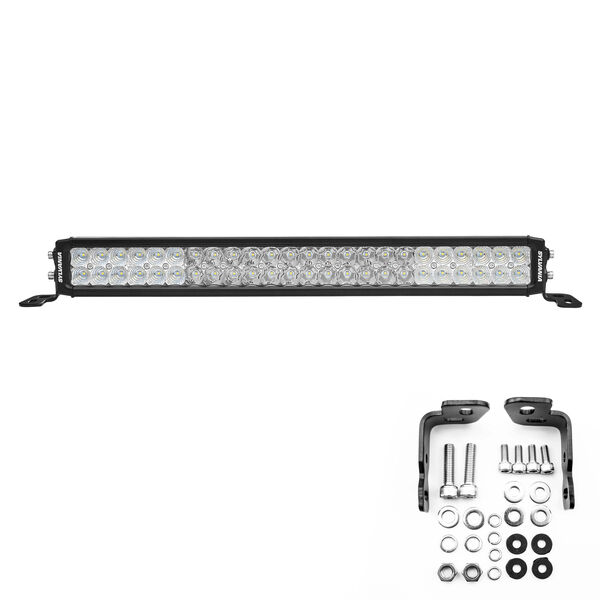

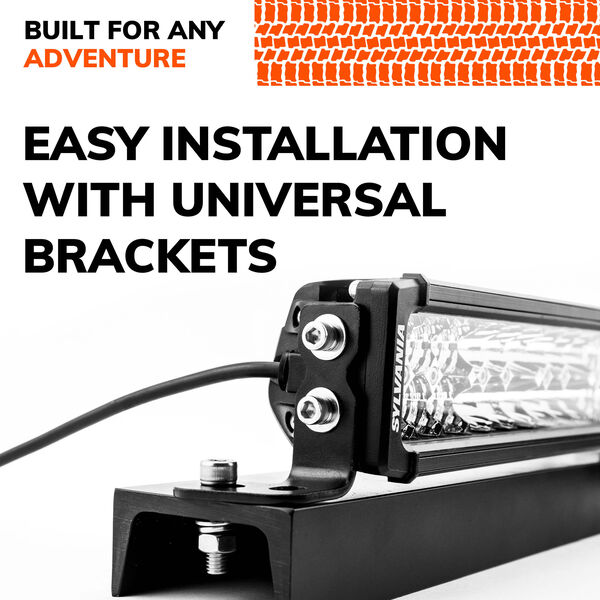

  • INCLUDED IN THE BOX: LED Light Bar, coated steel brackets, and hardware. Easy to install almost anywhere. For a professional finish, consider SYLVANIA's light bar wiring harness kit. Part number is LBARHRNS1PBX (SOLD SEPERATELY)

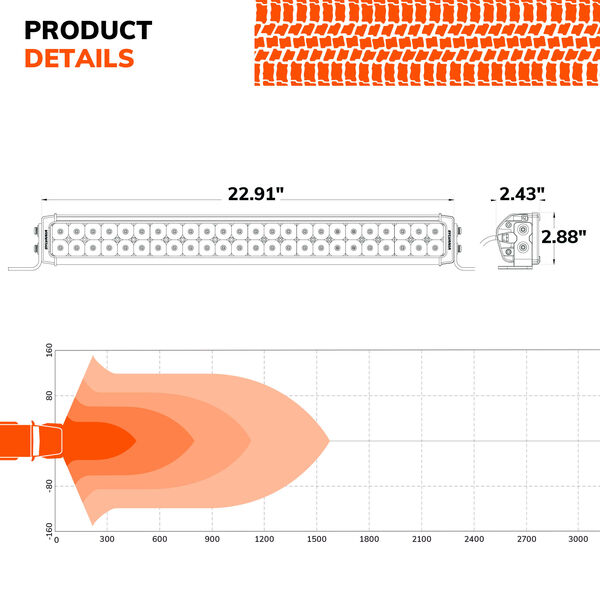

  • Product Length (Inches): 2.43
  • Product Height (Inches): 22.91
  • Input Wiring: Pigtail
  • Power Draw Off-Road: 4.6A @ 12V DC
  • Off Road Raw Lumens: 9120
  • Off Road Effective Lumens: 4100
  • Lens Material: Polycarbonate
  • Beam Pattern: Combination Spot and Flood
  • Waterproof Rating: IP67
  • Operating Temperature (Fahrenheit): -40 - 150 Degrees
  • Warranty: Lifetime Limited Warranty
  • Light Shape: Rectangle
  • Light Size (Inches): 20

Installation Guides

Downloadable Guides

Installation Guide

Additional Documentation
